Long Range WiFi Booster

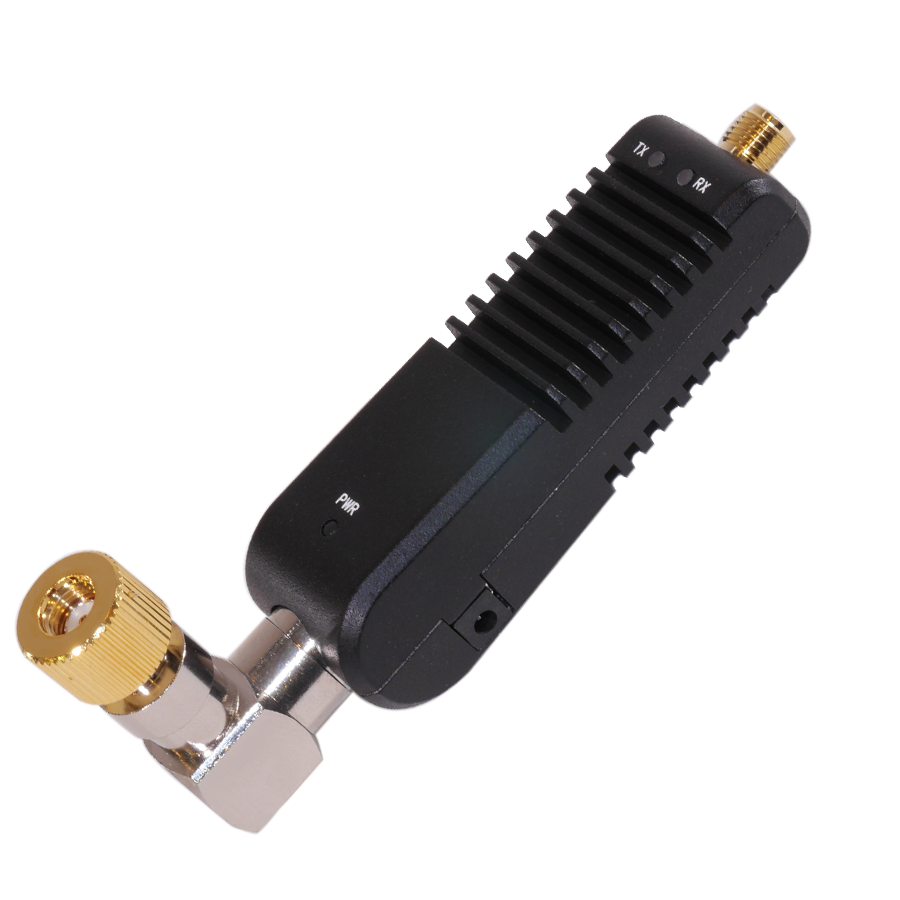

Extended WiFi range with increased transmitter power. The ALFA Long Range WiFi Amplifier provides up to 800 mW of transmit power. Coupled with its highly sensitive and upgradeable 5 dBi omni-directional antenna, this kit can achieve 2.5 Watts of total output power (EIRP).

Supports 2.4GHz ~ 2.5 GHz 802.11 DSSS modulations.
+27 dBm at 802.11g. +29 dBm at 802.11b.
90° RP-SMA Male to RP-SMA Female.
LED: Power=Green, Tx=Red, Rx=Amber.
Rx Input power: -10 dBm
Tx Input power: +20 dBm

Includes:

  • ALFA WiFi Amplifier
  • 5V, 1A USB Power Cable
  • RP-SMA 5 dBi Dipole Antenna

Remember when calculating your total output that the FCC only allows 36dBm EIRP (4 watts). Transmitted power must be configured correctly to prevent potential interference problems due to the effective isotropic radiated power exceeding the limits as defined in FCC part 15.247(i). As defined in FCC part 15.247(i), the power transmitted by the transmitter can only have a maximum power level of 1 watt or 30dBm. The antenna can only have a maximum gain of 6dBi. If the power at the transmitter is lowered by 1dB, the antenna gain can be increased by an additional 3dB. For example, if an installation reduced power at the transmitter to 29dBm, it could use an antenna having a gain of 9dBi. In general, for every 1dB power reduction at the transmitter from 30dBm, an installation can add 3dB gain at the antenna.

A breakdown of transmitter versus antenna gain is as follows:

30dBm transmit - 6dBi antenna
29dBm transmit - 9dBi antenna
28dBm transmit - 12dBi antenna
27dBm transmit - 15dBi antenna
26dBm transmit - 18dBi antenna
25dBm transmit - 21dBi antenna
24dBm transmit - 24dBi antenna
