HackRF One

$328.00

Quantity


Details

Back in stock!

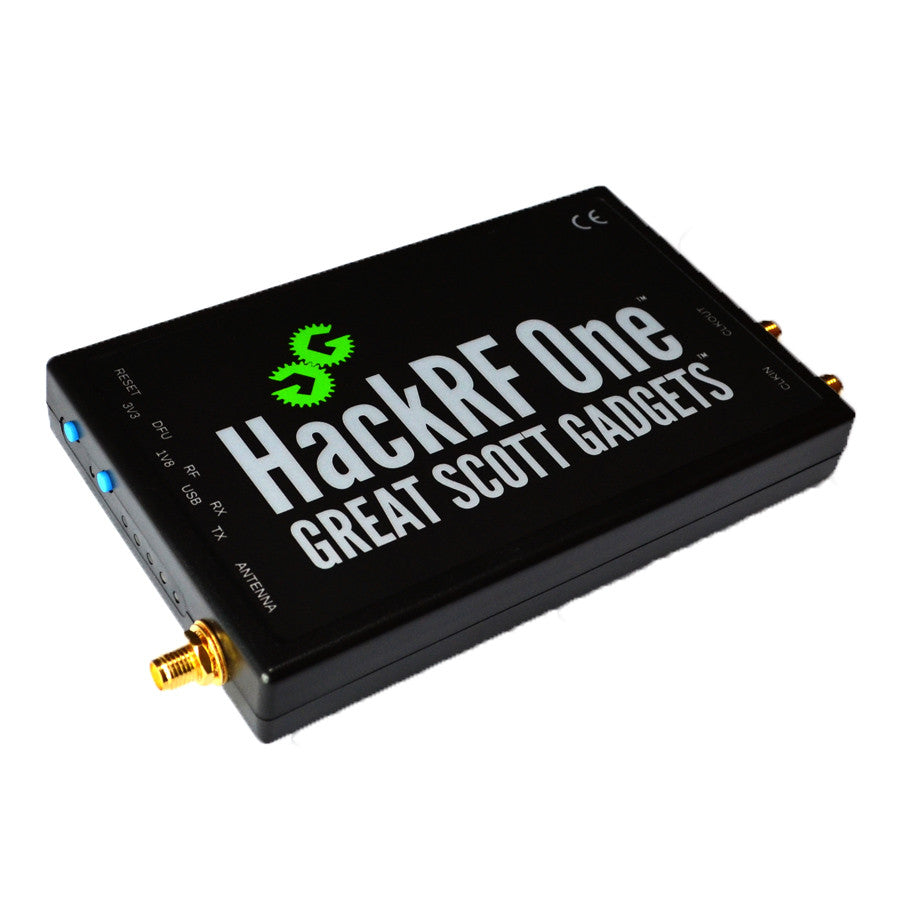

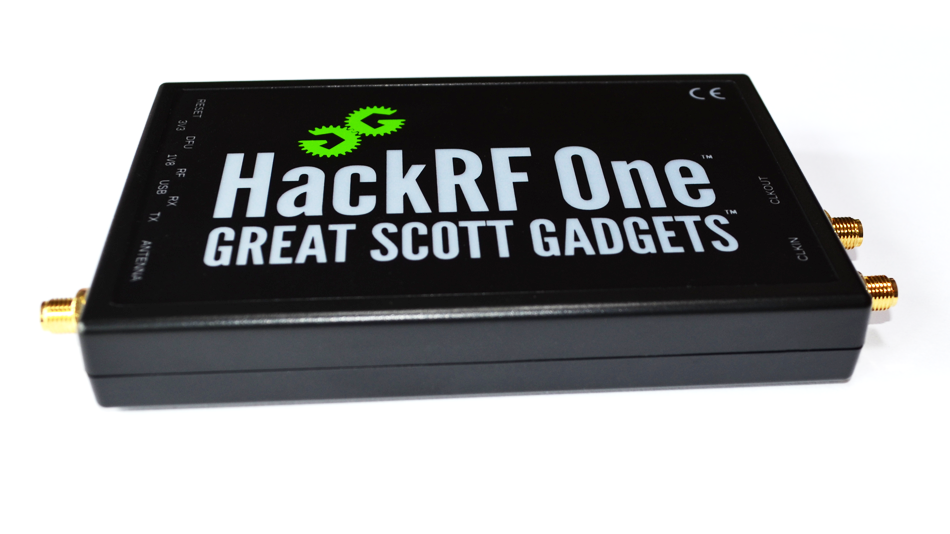

HackRF One from Great Scott Gadgets is a Software Defined Radio  peripheral capable of transmission or reception of radio signals from 10  MHz to 6 GHz.  Designed to enable test and  development of modern and  next generation radio technologies, HackRF One is an open source  hardware platform that can be used as a USB peripheral or programmed for  stand-alone operation.

  • 10 MHz to 6 GHz operating frequency
  • half-duplex transceiver
  • up to 20 million samples per second
  • 8-bit quadrature samples (8-bit I and 8-bit Q)
  • compatible with GNU Radio, SDR#, and more
  • software-configurable RX and TX gain and baseband filter
  • software-controlled antenna port power (50 mA at 3.3 V)
  • SMA female antenna connector

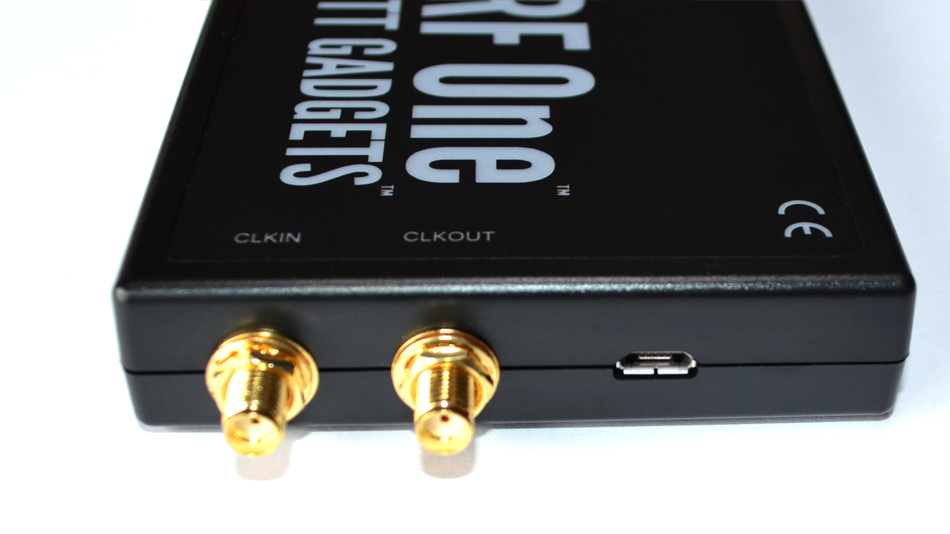

  • SMA female clock input and output for synchronization

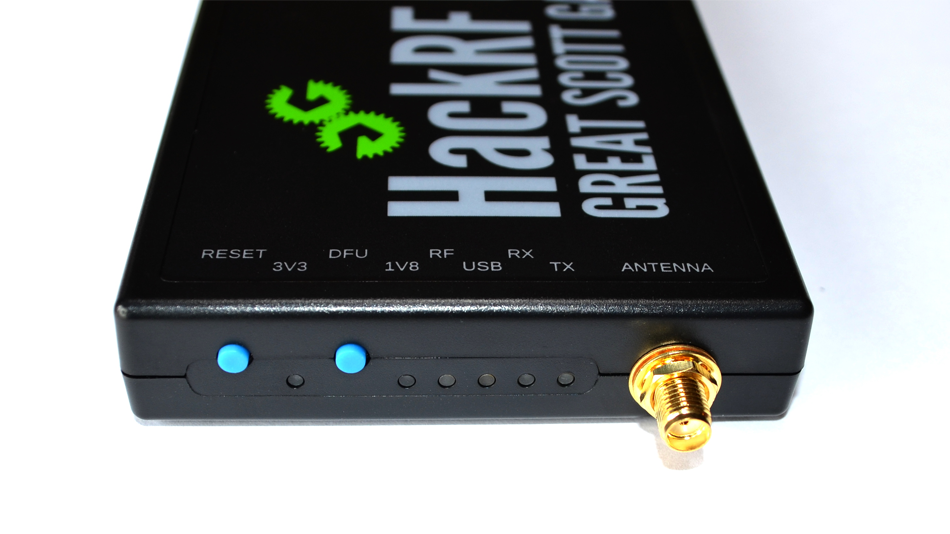

  • convenient buttons for programming
  • internal pin headers for expansion
  • Hi-Speed USB 2.0
  • USB-powered
  • open source hardware
